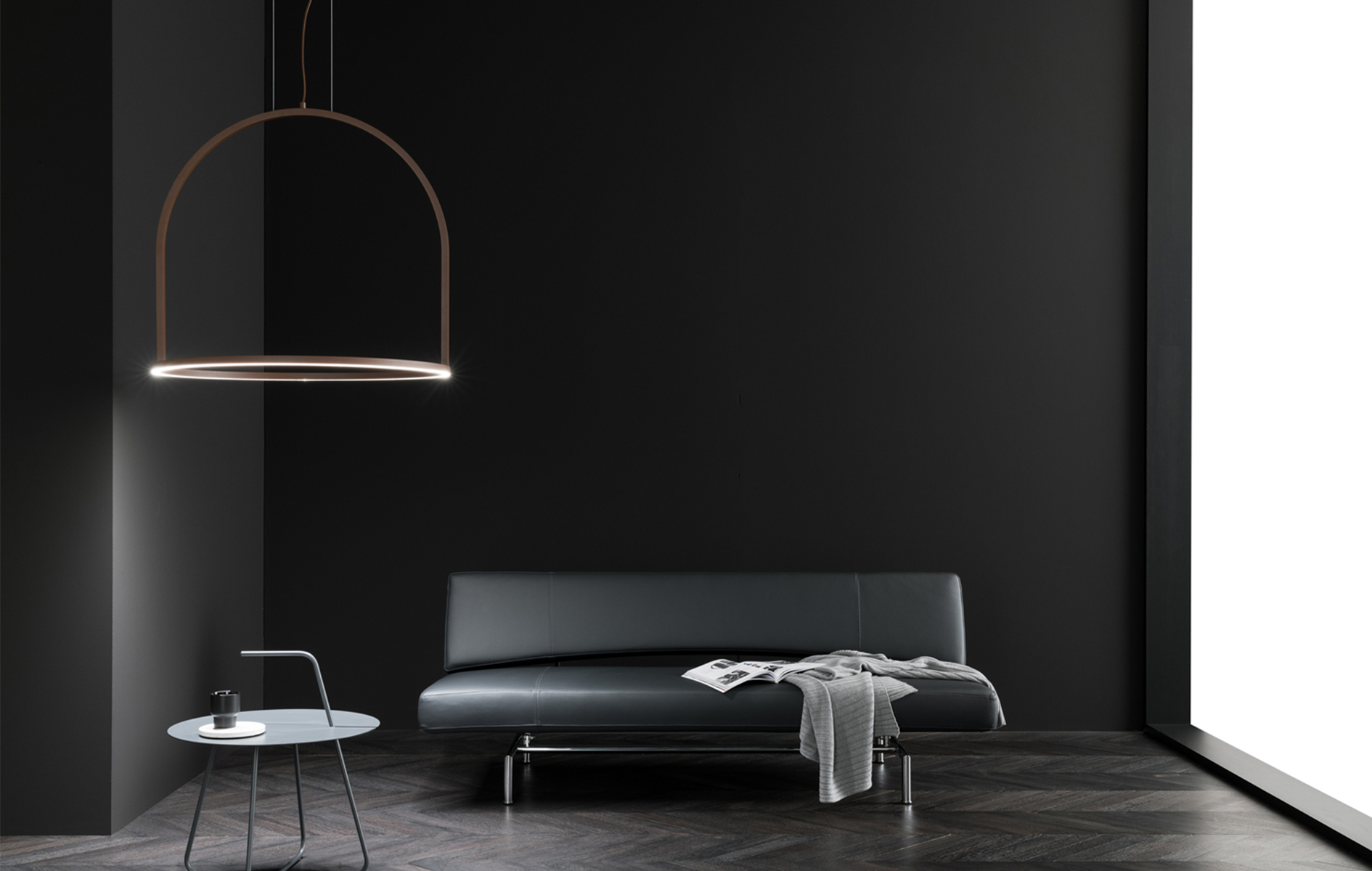

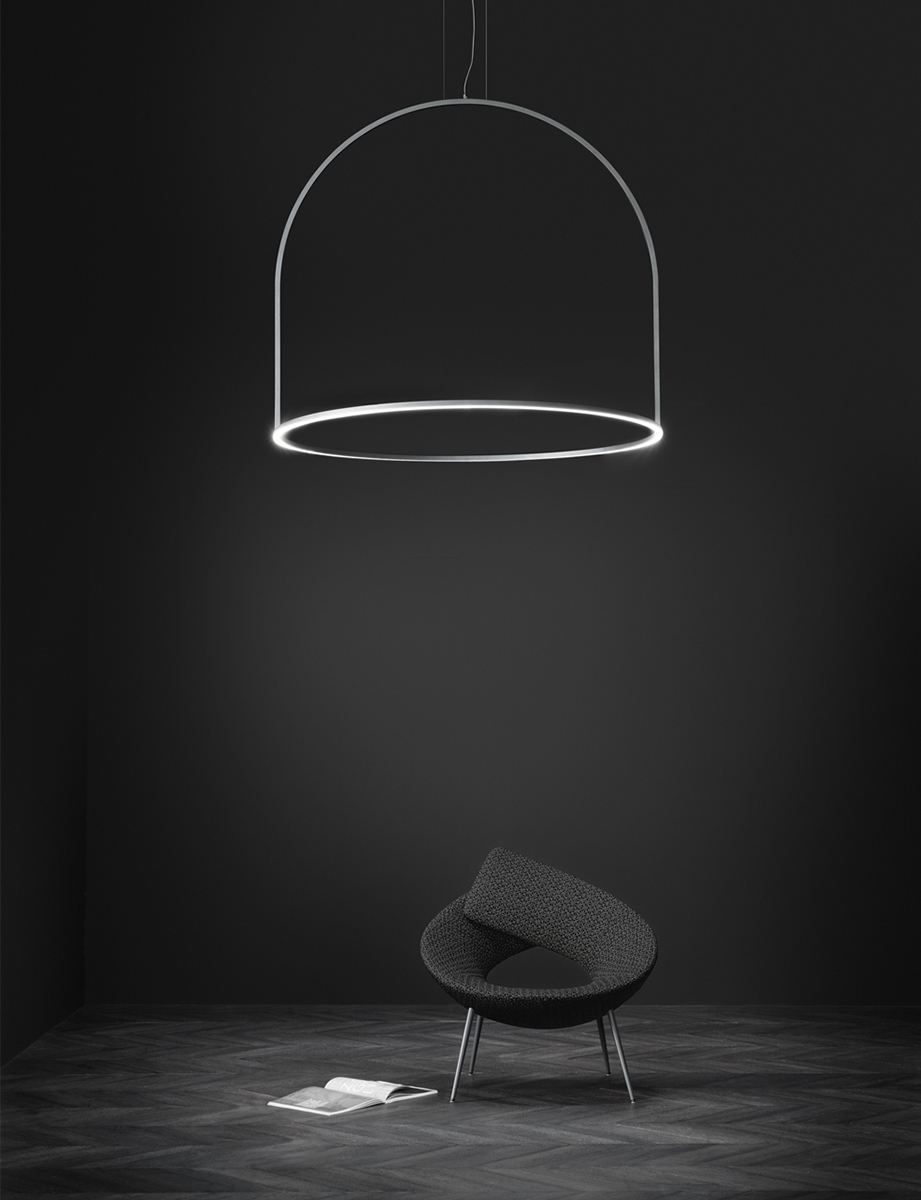

U-Light
DETAILS
Wattage
63W, 86W or 125W LED
Material
Painted Aluminium
Colour Temperature
2700K or 3000K
Lumen Output
63W – 4904lm
86W – 7354lm
125W – 9900lm
Beam Angle
Diffused
IP Rating
IP20
CRI
90
Dimming
1-10V Dimming
Other
Available In 3 Sizes
Available With Sound Absorbing Panels Upon Request (Please Enquire)
Downlight Or Uplight Projection
FINISHES
Anthracite Grey
Rust Brown
DIMENSIONS
90
Diameter 900mm
Profile Width 23mm
Fitting Height 826mm
Overall Height 3800mm Max
Canopy Diameter 358mm
Canopy Mounting Point Length 283mm
Canopy Mounting Point Width 160mm
Canopy Depth 89mm
120
Diameter 1200mm
Profile Width 23mm
Fitting Height 1126mm
Overall Height 4000mm Max
Canopy Diameter 358mm
Canopy Mounting Point Length 283mm
Canopy Mounting Point Width 160mm
Canopy Depth 89mm
160
Diameter 1600mm
Profile Width 23mm
Fitting Height 1426mm
Overall Height 4300mm Max
Canopy Diameter 358mm
Canopy Mounting Point Length 283mm
Canopy Mounting Point Width 160mm
Canopy Depth 89mm
